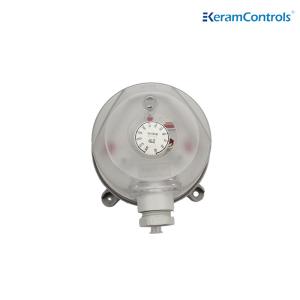

Differential Pressure Switch, Adjustable, Air, Barb for 1/4" ID
Description
The Series ADPS/EDPS Adjustable Differential Pressure Switch is designed for pressure, vacuum, and differential pressures. The dual scaled adjustment knob in inches water column and pascals allows changes to the switching pressure to be made without a pressure gage. The ADPS/EDPS is available with settings from 0.08 in w.c. (20 Pa) up to 20 in w.c. (5000 Pa). The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases. Series EDPS models meet UL508 and are constructed of plenum rated plastics. The compact size, adjustment knob and low cost make the ADPS/EDPS the perfect choice for HVAC applications.
Technical Specifications
| Model | QAD |
| Media | Air,non-combustible and non-aggressive gasses |
| Max Operating Pressure | 10kPa |
| Mounting Position | Diaphragm in any vertical plane |
| Degree of protection | IP54(with cover) |
| Operating Temperature | -40℃to 85℃ |
| Contact Arrangement | SPDT |
| Electrical Rating | Resistance: Initial: < 50 milliohms; |
| Current1.5A resistive(0.4A inductive) 250V |
| Electric Connection | 6.3x0.8 blade 46244 or screw terminals |
| Material | Housing:ABS |
| Duct connectors: ABS |
| Membrane: Silicone |
| Cable sleeve:PVC |
| Weight | 0.15kg(0.35kg with flexible pipe) |
| Connection | φ6.0mm for tube connection |
| Approval | UL,CE,RoHS |
Dimensions(mm)
Installation Connections
QAD series air pressure controls is factory-calibrated for vertical position. If installed horizontally, this will affect the switching point as following:
• with cover facing upwards, switching point is 15Pa higher than scale;
• with cover facing downwards, switching point is 15Pa lower than scale.
Note: Do not install upside down with trip pressures of less than 50pa!
Electric Wiring
Product Range
| Model | Pressure Range | Differential | Tolerance |
| QAD-1 | 20~200Pa | 10Pa | ±15% |
| QAD-2 | 30~300Pa | 10Pa | ±15% |
| QAD-3 | 40~400Pa | 20Pa | ±15% |
| QAD-4 | 50~500Pa | 20Pa | ±15% |
| QAD-5 | 200~1000Pa | 100Pa | ±15% |
| QAD-6 | 500~2500Pa | 150Pa | ±15% |
| QAD-7 | 1000~5000Pa | 250Pa | ±15% |
- The performances stated in this sheet can be modified without any prior notice due to design improvements
